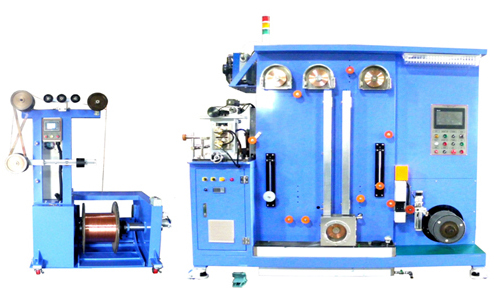

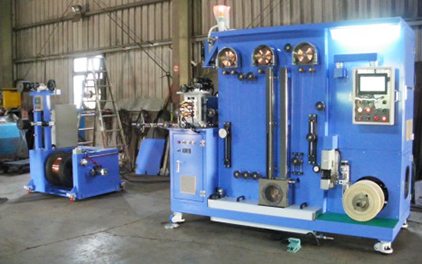

Copper Rolling Machine with Annealing
Machine Specification:
Suitable Wire Dia (mm) Ø0.1 – 1.0 Finish Thickness (mm) 0.08 - 0.5
Finish Width (mm) 0.3 – 2.5 Rotating Speed (R.P.M.) 150
Rolling Motor 7.5 HP/5.5 KW Annealing Motor 3 HP/ 4 KW
Take up Motor 1 HP/0.75 KW
Roller ØO.D. 106 mm × H. 31 mm (Special Material)
Dimension L 2300 mm × W 1050 mm × H 2100 mm(2,000 kg)
Produce PV Ribbon Tin Plated Flat Copper Wire for Solar Cell Interconnection

PV Ribbon

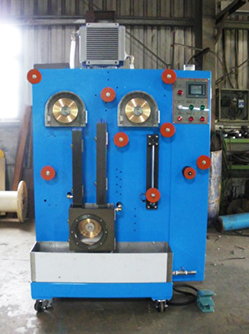

Annealing
Machine Specification:
Line Speed (M/min) 120
Annealing Wheel ØO.D. 160 mm × H. 15 mm * 3 PCS
