首頁 » 產品介紹 » 放線裝置系列 |
 |
 |
|
|
 |

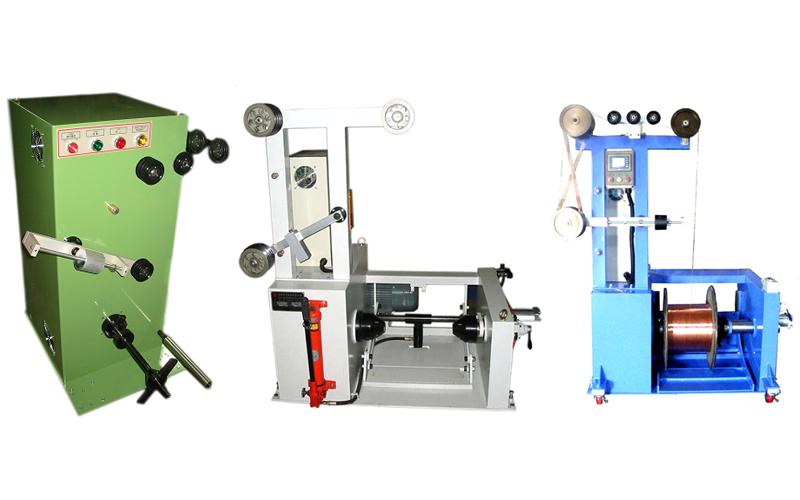

| 高速動力放線 |
| 機器規格： |
| 型式 |
Shaftless Type (4 sets Movable Idler) |
| 適用軸 (mm) |
Ø400/500/630(or Match your Bobbin) |
Suitable Wire Dia(mm) |
Ø0.12 - 0.18 × 7 Pairs |
| 線速 (米/分鐘) |
100 - 160 |
Lifting Bobbin |
Motor or Oil Press, Fixed with manual cylinder |
| Tension Control |
Detect Angle of Swing Arm |
電控操縱 |
3.8" Man-Machine Interface operate Screen show all data,equip Power and Stop button |
| Brake System |
Pneumatic Brake |
材積 |
L 1000 mm × W 1400 mm × H 1580 mm (350 kg) |
|
| |
 |
 |
|
|
|

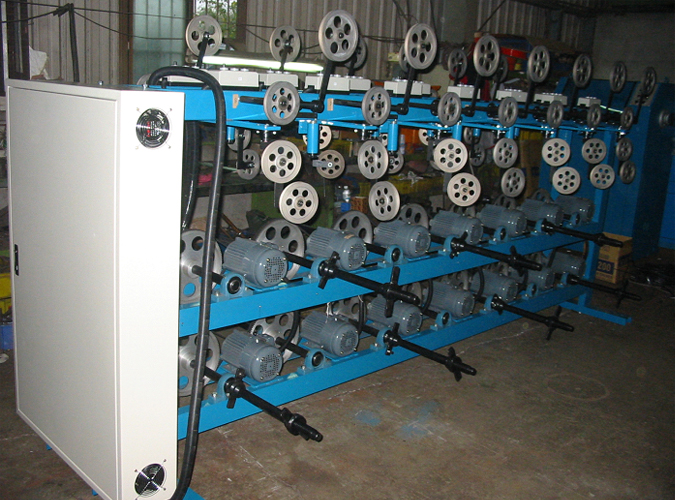

| Dual High Speed Motor Pay off (For LAN Cable) |
| 機器規格： |
| 適用軸 (mm) |
Ø500/600 or match your Bobbin |
線速(米/分鐘) |
100 |
| Lifting Bobbin |
Fixed with manual cylinder |
|
|
|
| |
|
|
| |
|
