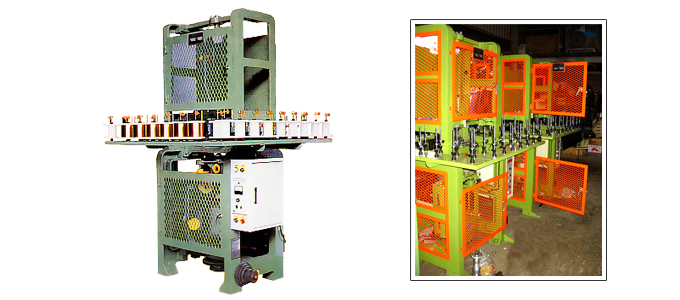

| Copper Wire Shielding Machine |
| Machine Specification： |
| Type |
S – 405 |
| Application |
For Copper wire Shielding, Applicability 56 pairs copper wires or directed by Customer |
| Driving Motor |
1 HP / 0.75 KW |
| Suitable Wire Diameter |
Ø 1.0 – 4.0 mm (PVC/PE) |
| Pay off Bobbin |
1. Input Code：Ø 405 mm × W 147 mm × ØH 60 mm
2. Plastic Bobbin：Ø 123 mm × W 65 mm × ØH 20 mm |
| Take up Bobbin |
Ø 405 mm × W 300 mm × ØH 60 mm |
| Dimension |
L 1300 mm × W 1300 mm × H 2200 mm (600 kg) |
|
| |
 |
| |
|
|
| |
|
