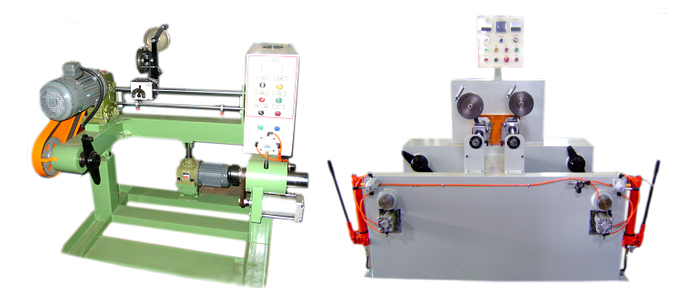

| High Speed Motor Take up |
| Machine Specification： |
| Applicative Bobbin |
Ø500/600/1000/1200 mm, We can match your Bobbin |
| Traverser |
Ø 40 mm Bearing traverse synchronize with Main Engine, Speed can be set |
| Bobbin is lift with Motor |
|
| |
 |
 |
|
|
|

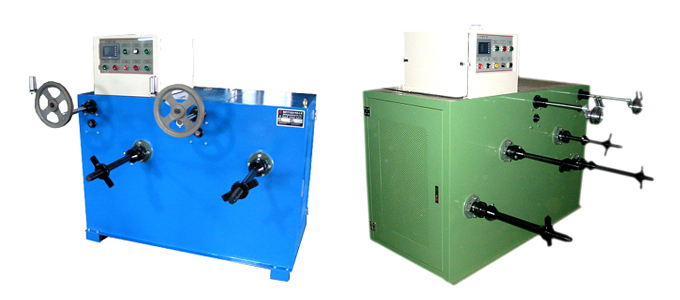

| Two/4 - Shafts Take up |
| Machine Specification： |
| Type |
Two/4 rods in front and rear |
| Applicative Bobbin |
Ø500/600 mm, We can match your Bobbin |
| Bearing Way Traverse |
| Bobbin is fixed with screw way |
|
 |
 |
| |
Traverser is driving with Servo Motor, depend on Wire Diameter |
| Bobbin is Fixed with Pneumatic Cylinder |
| |
|
|
| |
|
|
|
| |
|
