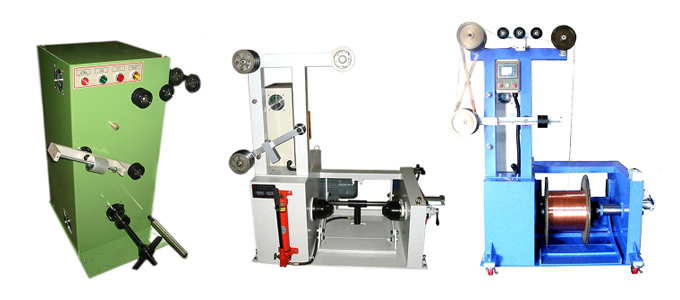

| High Speed Motor Pay off |
| Machine Specification： |
| Type |
Shaftless Type (4 sets Movable Idler) |
| Applicative Bobbin (mm) |
Ø400/500/630(or Match your Bobbin) |
Suitable Wire Dia(mm) |
Ø0.12 - 0.18 × 7 Pairs |
| Line Speed (M/min) |
100 - 160 |
Lifting Bobbin |
Motor or Oil Press, Fixed with manual cylinder |
| Tension Control |
Detect Angle of Swing Arm |
Operation |
3.8" Man-Machine Interface operate Screen show all data,equip Power and Stop button |
| Brake System |
Pneumatic Brake |
Dimension |
L 1000 mm × W 1400 mm × H 1580 mm (350 kg) |
|
| |
 |
 |
|
|
|

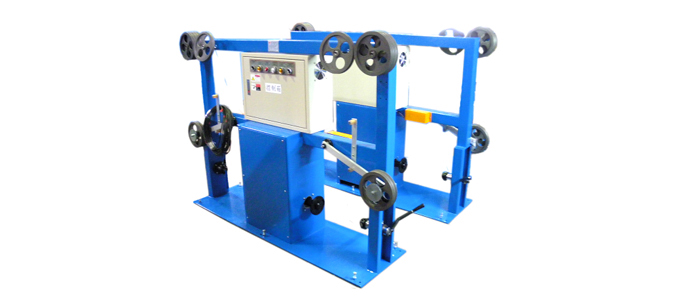

| Dual High Speed Motor Pay off (For LAN Cable) |
| Machine Specification： |
| Applicative Bobbin (mm) |
Ø500/600 or match your Bobbin |
Line Speed (M/min) |
100 |
| Lifting Bobbin |
Fixed with manual cylinder |
|
|
|
| |
|
|
| |
|
